Elastomeric Rubber Sealing Rings for UPVC Pipes

Elastomeric Rubber Sealing Rings for UPVC Pipes

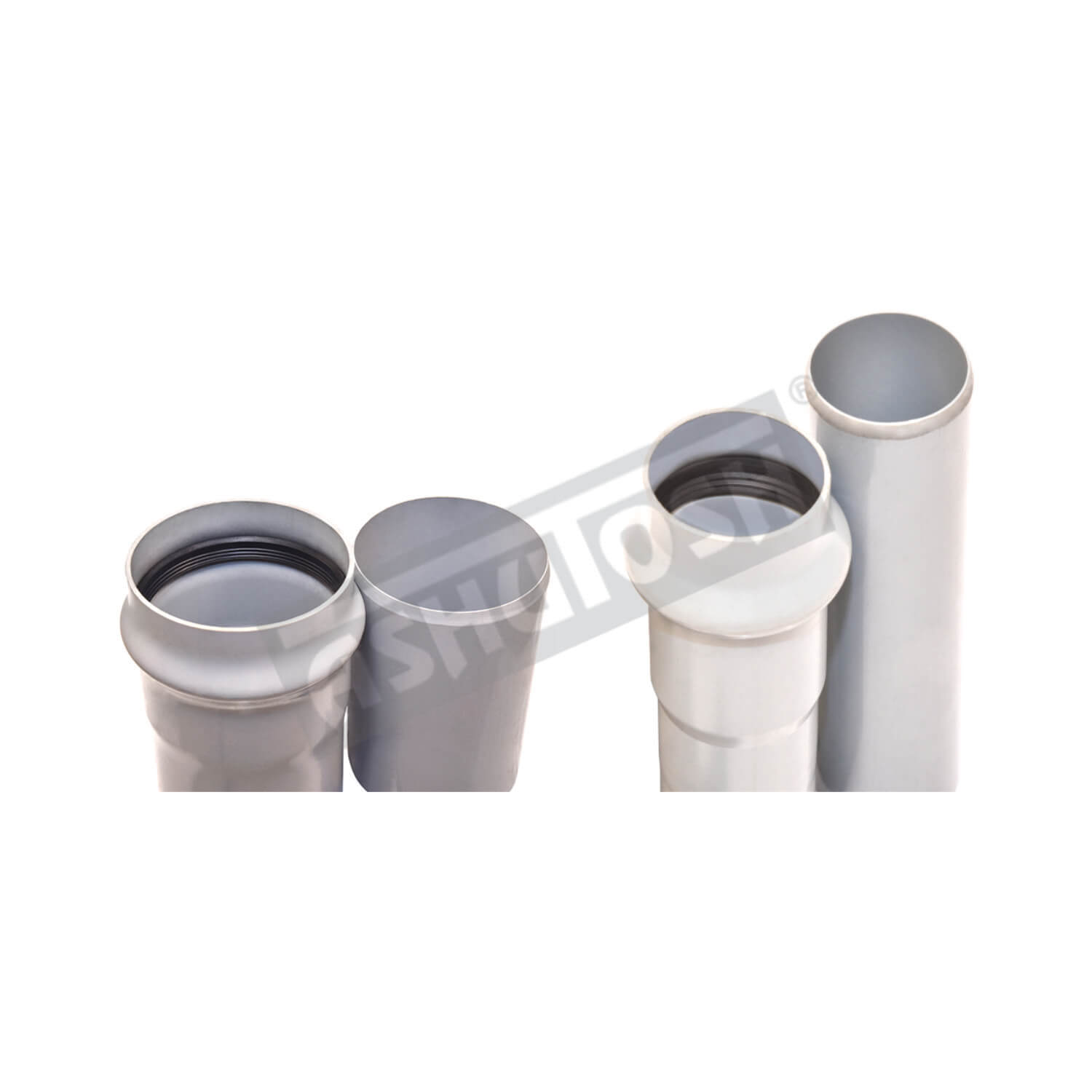

UPVC Pipes using Elastomeric Sealing Rings are generally made as per IS:4985 The said IS prescribes usage of Rubber Rings as per IS:5382-1985. The said Sealing Rings are marked with the ISImark. We have different Ring designs to suit customer specific socket design.

Description

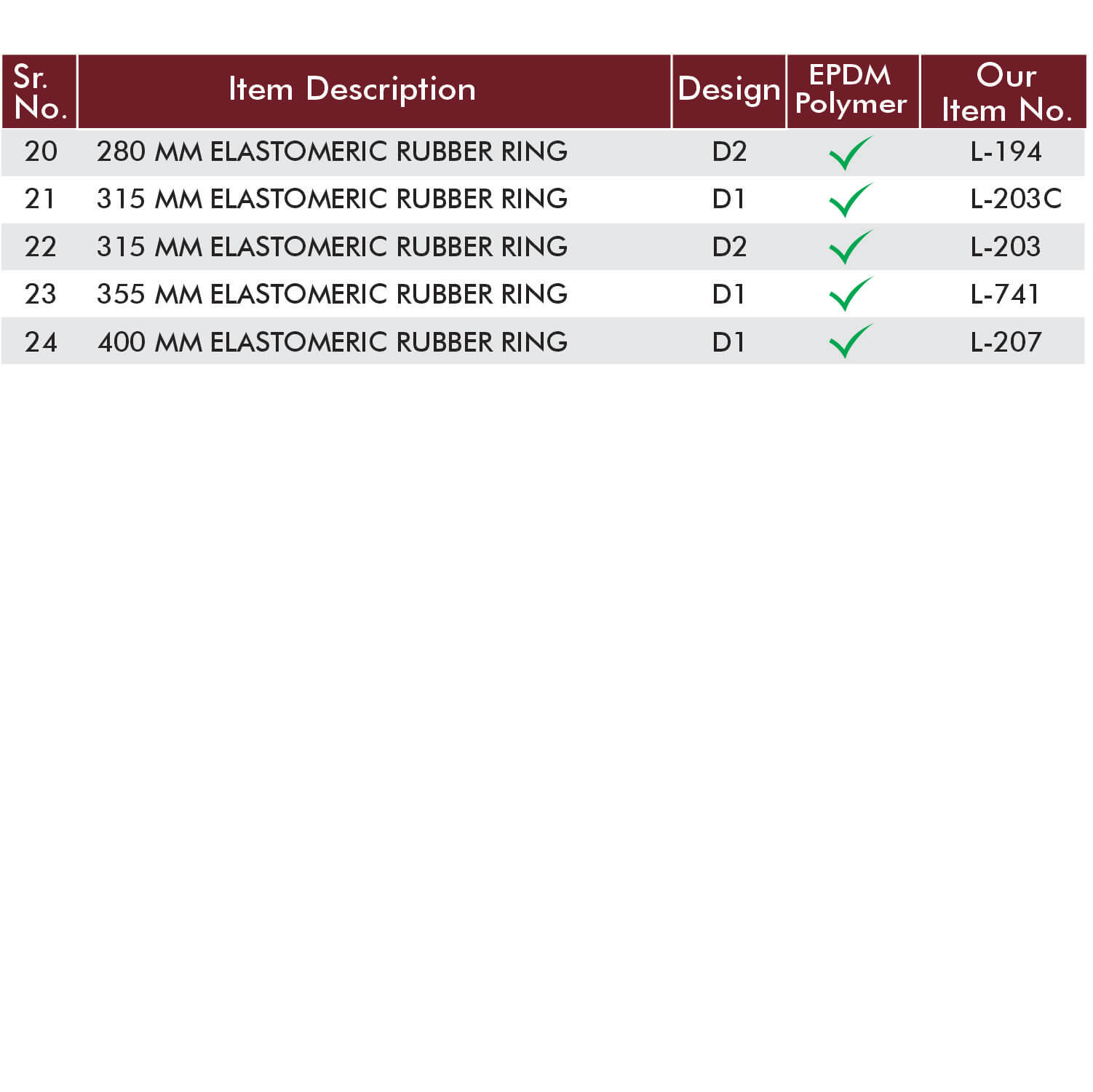

Sr.No.Item DescriptionDesignSize OD x Width x HeightEPDM PolymerOur Item No.
163 MM ELASTOMERIC RUBBER RINGD182.3 x 9.4 x 15.5L-192
263 MM ELASTOMERIC RUBBER RINGD283.1 x 10.6 x 18.2L-3528
375 MM ELASTOMERIC RUBBER RINGD199.5 x 11.6 x 18.3L-191
475 MM ELASTOMERIC RUBBER RINGD291.7 x 11 x 19L-964
590 MM ELASTOMERIC RUBBER RINGD1112.5 x 12.3 x 17.4L-185
690 MM ELASTOMERIC RUBBER RINGD2113.2 x 11.9 x 21.5L-185J
7110 MM ELASTOMERIC RUBBER RINGD1136.8 x 13.9 x 21.5L-186
8110 MM ELASTOMERIC RUBBER RINGD2135.8 x 14.5 x 23L-968
9125 MM ELASTOMERIC RUBBER RINGD1153.1 x 14 x 24.4L-200
10140 MM ELASTOMERIC RUBBER RINGD1170 x 14.7 x 25.3L-193
11160 MM ELASTOMERIC RUBBER RINGD1192.2 x 15.8 x 24L-196
12180 MM ELASTOMERIC RUBBER RINGD1214 x 16.4 x 26.1L-189
13200 MM ELASTOMERIC RUBBER RINGD1236.8 x 17 x 27.5L-201
14200 MM ELASTOMERIC RUBBER RINGD2236.4 x 18.9 x 29.3L-3534
15225 MM ELASTOMERIC RUBBER RINGD1263 x 18.9 x 30.2L-202C
16225 MM ELASTOMERIC RUBBER RINGD2262.7 x 19.7 x 30.4L-202
17250 MM ELASTOMERIC RUBBER RINGD1293 x 19.9 x 32.9L-187
18250 MM ELASTOMERIC RUBBER RINGD2294.3 x 22.4 x 32.9L-3535
19280 MM ELASTOMERIC RUBBER RINGD1326.6 x 21 x 35.2L-194C
20250 MM ELASTOMERIC RUBBER RINGD2326.4 x 24.5 x 35.9L-187
21315 MM ELASTOMERIC RUBBER RINGD1364.4 x 21.9 x 36.5L-203C
22315 MM ELASTOMERIC RUBBER RINGD2364.8 x 25.4 x 36.6L-203
23355 MM ELASTOMERIC RUBBER RINGD1403.8 x 23.7 x 39.7L-741
24400 MM ELASTOMERIC RUBBER RINGD1458.8 x 28.5 x 44.3L-207
