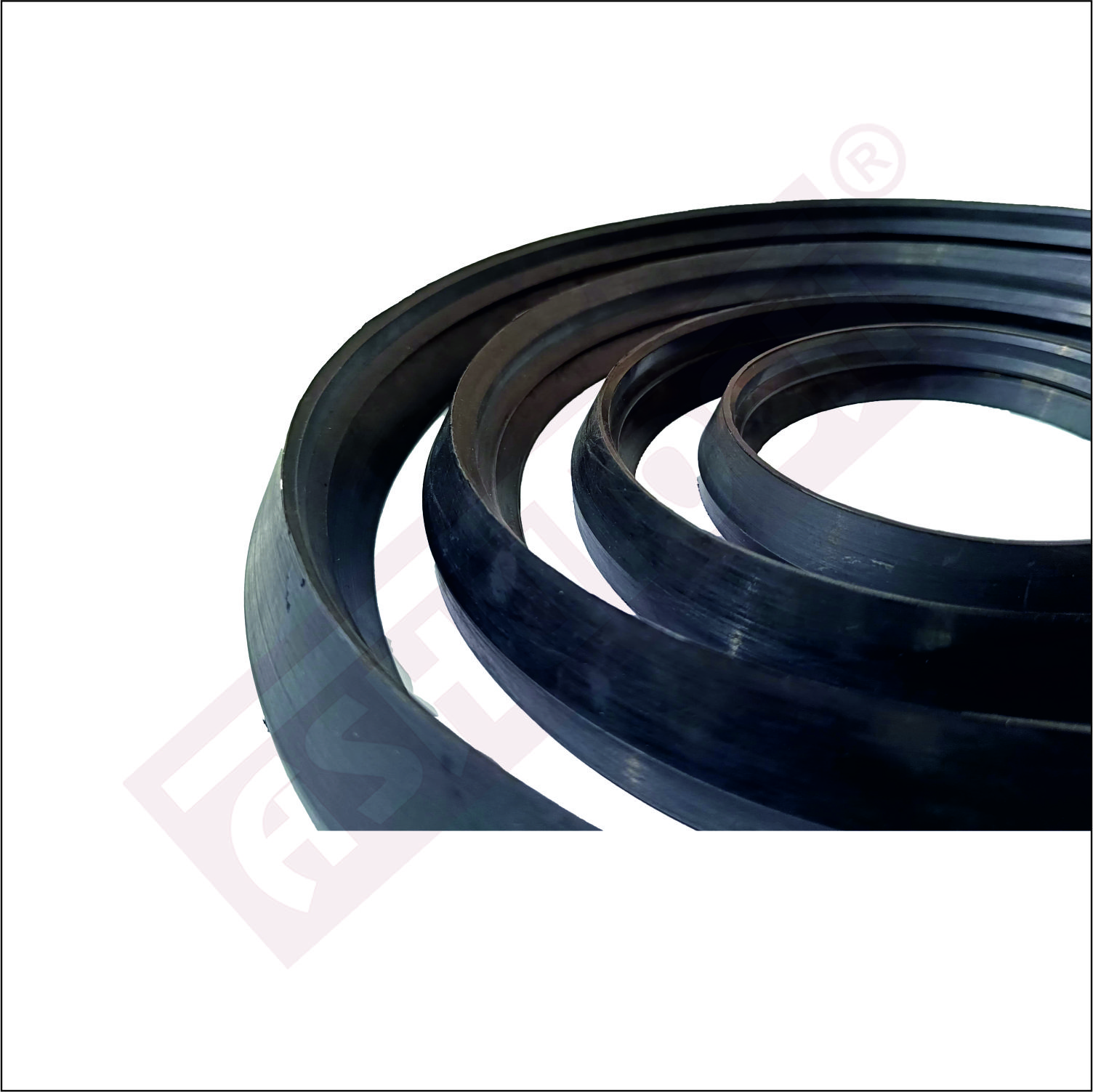

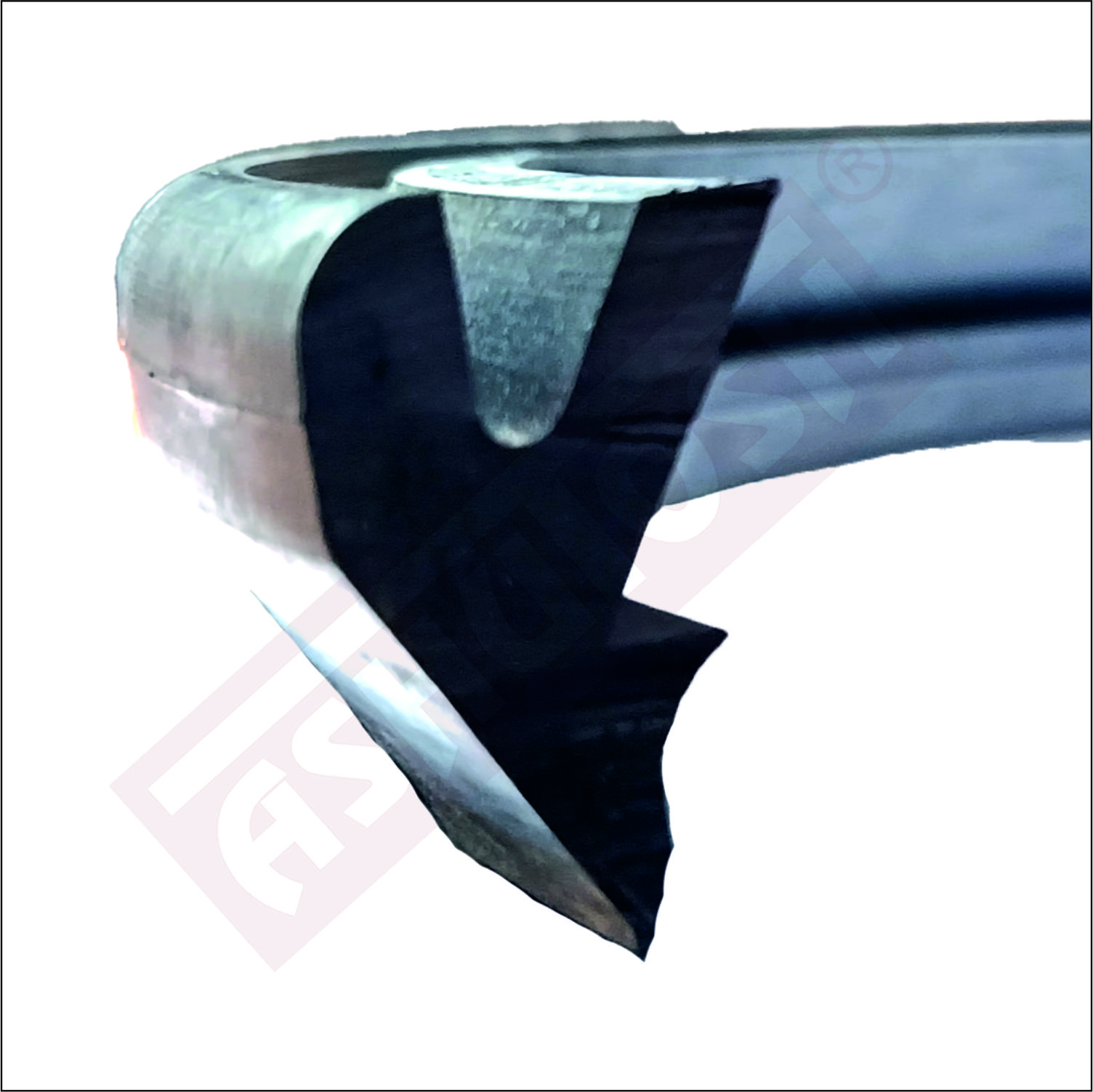

3S Type Ring
| Sr. No. | Item Description | Size (OD x Width x Height) | Material | Item No. |
|---|---|---|---|---|
| 1 | 63 MM 3S Type Ring | 80.60 x 10.3 x 18.1 | EPDM | L-5497 |
| 2 | 63 MM 3S Type Ring | 82.3 x 9.4 x 15.5 | EPDM | L-192 |
| 3 | 75 MM 3S Type Ring | 95 x 11.5 x 20.3 | EPDM | L-5498 |
| 4 | 75 MM 3S Type Ring | 99.5 x 11.6 x 18.3 | EPDM | L-191 |
| 5 | 90 MM 3S Type Ring | 112.1 x 12.8 x 22.2 | EPDM | L-5499 |
| 6 | 90 MM 3S Type Ring | 112.5 x 12.3 x 17.4 | EPDM | L-185 |
| 7 | 110 MM 3S Type Ring | 134 x 14.5 x 23.5 | EPDM | L-5344 |
| 8 | 110 MM 3S Type Ring | 136.8 x 13.9 x 21.5 | EPDM | L-186 |
| 9 | 125 MM 3S Type Ring | 153.1 x 14 x 24.4 | EPDM | L-200 |
| 10 | 140 MM 3S Type Ring | 170 x 14.7 x 25.3 | EPDM | L-193 |
| 11 | 160 MM 3S Type Ring | 190 x 17 x 27 | EPDM | L-5345 |
| 12 | 160 MM 3S Type Ring | 192.2 x 15.8 x 24 | EPDM | L-196 |
| 13 | 180 MM 3S Type Ring | 213.1 x 18.55 x 28.7 | EPDM | L-5500 |
| 14 | 180 MM 3S Type Ring | 214 x 16.4 x 26.1 | EPDM | L-189 |
| 15 | 200 MM 3S Type Ring | 234.2 x 19.1 x 29.5 | EPDM | L-5501 |
| 16 | 200 MM 3S Type Ring | 236.8 x 17 x 27.5 | EPDM | L-201 |
| 17 | 225 MM 3S Type Ring | 263 x 18.9 x 30.2 | EPDM | L-202C |
| 18 | 225 MM 3S Type Ring | 269 x 23 x 31.5 | EPDM | L-5346 |
| 19 | 250 MM 3S Type Ring | 290 x 22.75 x 36 | EPDM | L-5347 |
| 20 | 250 MM 3S Type Ring | 293 x 19.9 x 32.9 | EPDM | L-187 |
| 21 | 280 MM 3S Type Ring | 325.2 x 24.6 x 37.3 | EPDM | L-5502 |
| 22 | 280 MM 3S Type Ring | 326.6 x 21 x 35.2 | EPDM | L-194C |
| 23 | 315 MM 3S Type Ring | 364.4 x 21.9 x 36.5 | EPDM | L-203C |
| 24 | 315 MM 3S Type Ring | 368 x 25.5 x 37 | EPDM | L-5348 |
| 25 | 355 MM 3S Type Ring | 403.8 x 23.7 x 39.7 | EPDM | L-741 |
| 26 | 400 MM 3S Type Ring | 458.8 x 28.5 x 44.3 | EPDM | L-207 |
